XYZ CARGO FOURWHEELER— Details

The XYZ CARGO FOURWHEELER is a good alternative to a car — agile, aerodynamic, and perfectly suited for transporting heavy loads and large objects.

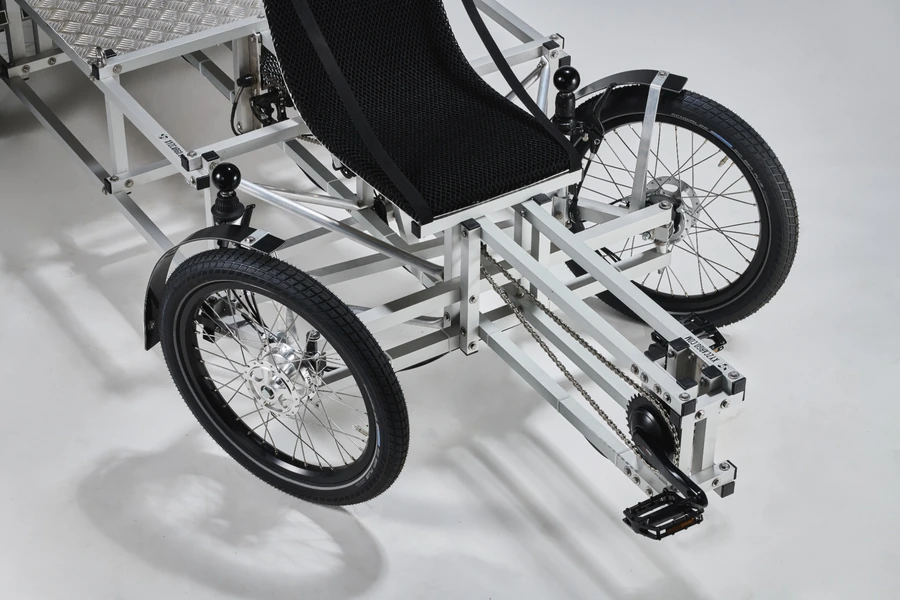

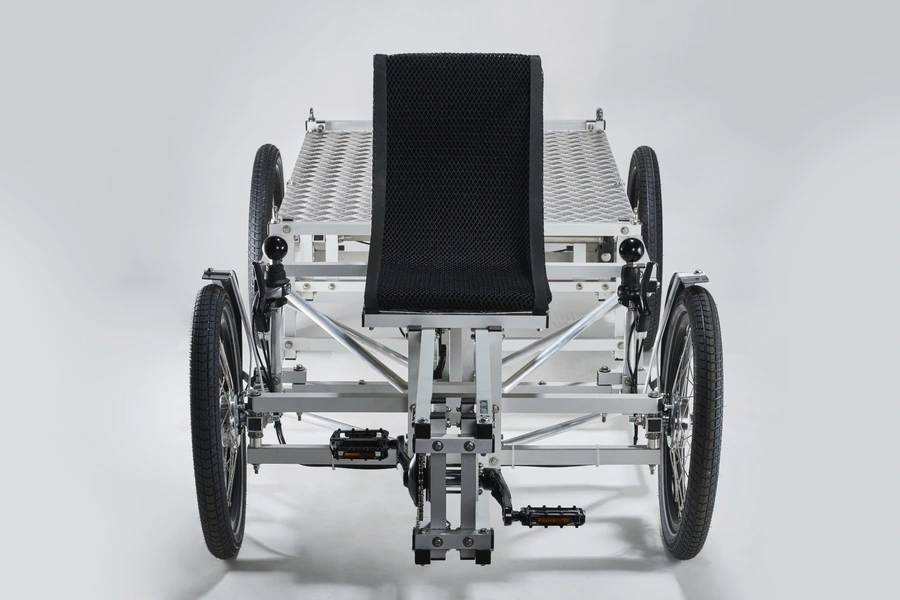

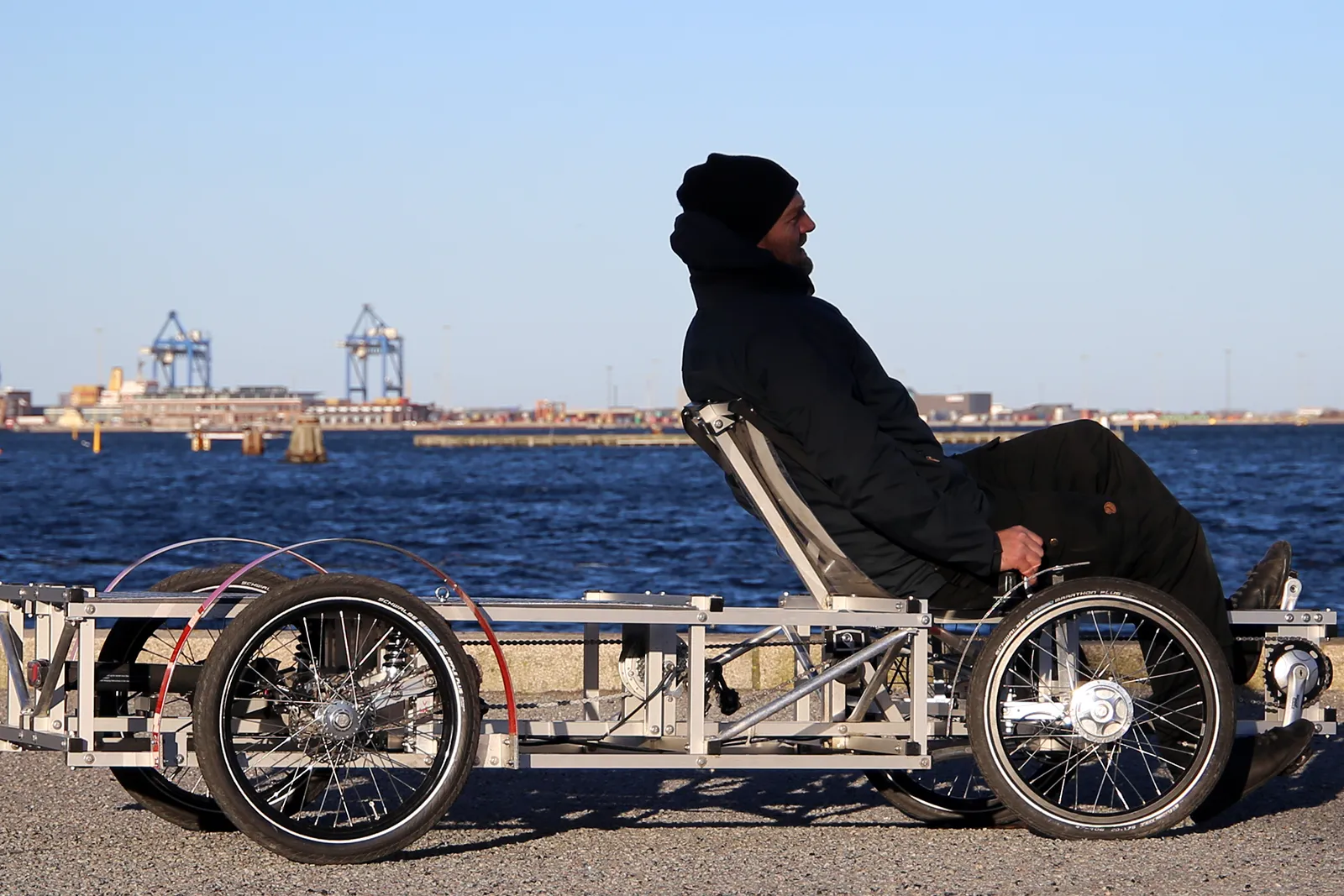

The XYZ CARGO FOURWHEELER has a total permissible weight of 360 kg and offers space for approximately one Euro pallet. The recumbent position reduces air resistance, and together with the narrow track width (100 cm) and small turning radius (Ackermann steering), the FOURWHEELER is optimally manoeuvrable in urban environments. It is the nimble and lightweight counterpart to the XYZ CARGO TRUCK — ideal for those who want to move a lot, yet arrive quickly and comfortably. Standard features include suspension and a powerful electric motor.

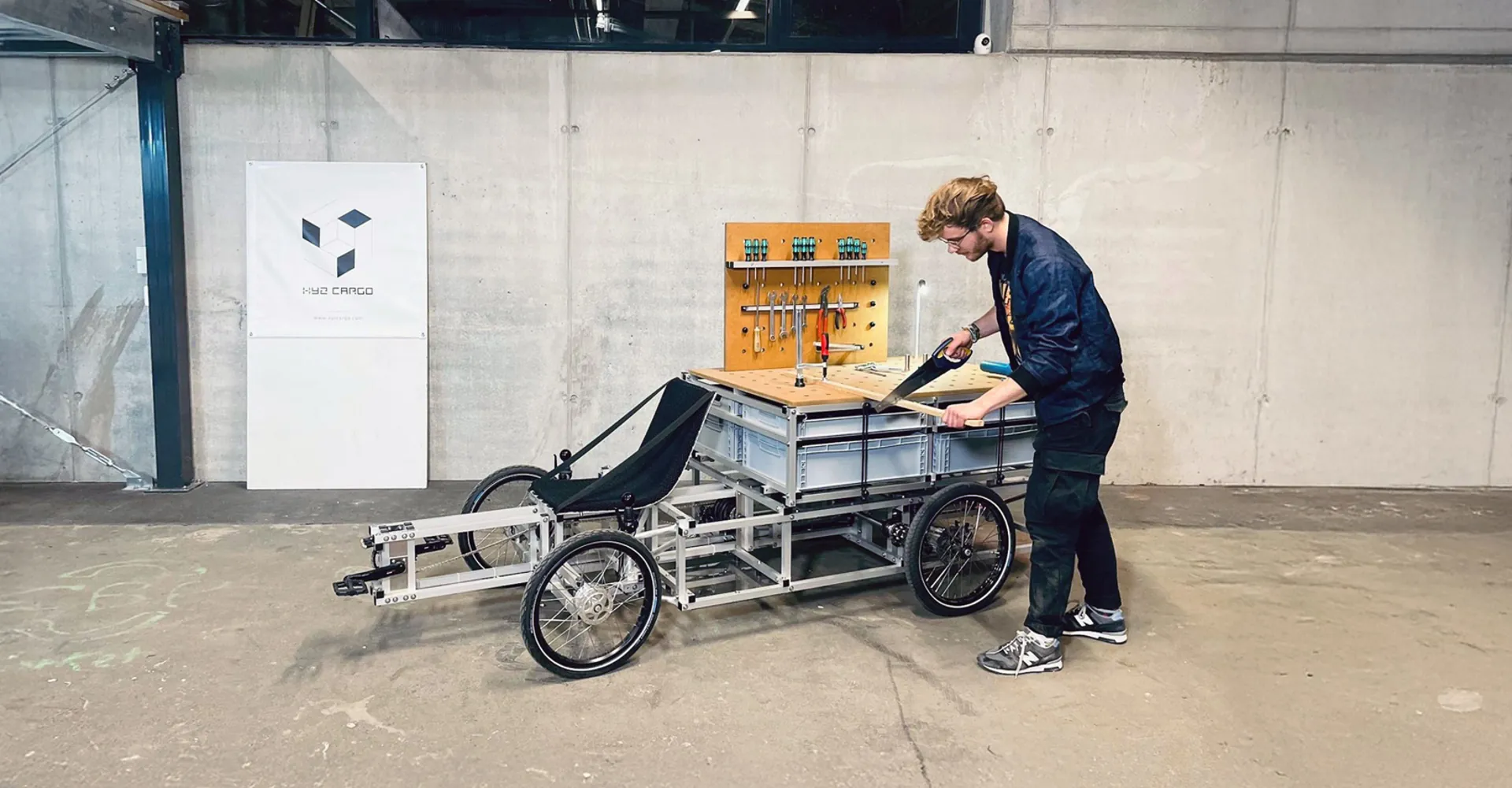

A variety of superstructures and detachable modules are available — for example, kitchen modules, logistics containers, flatbeds, loading platforms with lashing rings, or passenger transport units. On request, XYZ CARGO can also develop a custom-built structure tailored to your specific needs.

• Dimensions: 270 × 100 cm (L × W) – other lengths on request
• Dead weight: 55 kg
• Payload capacity: up to 300 kg (including driver, body, and load)

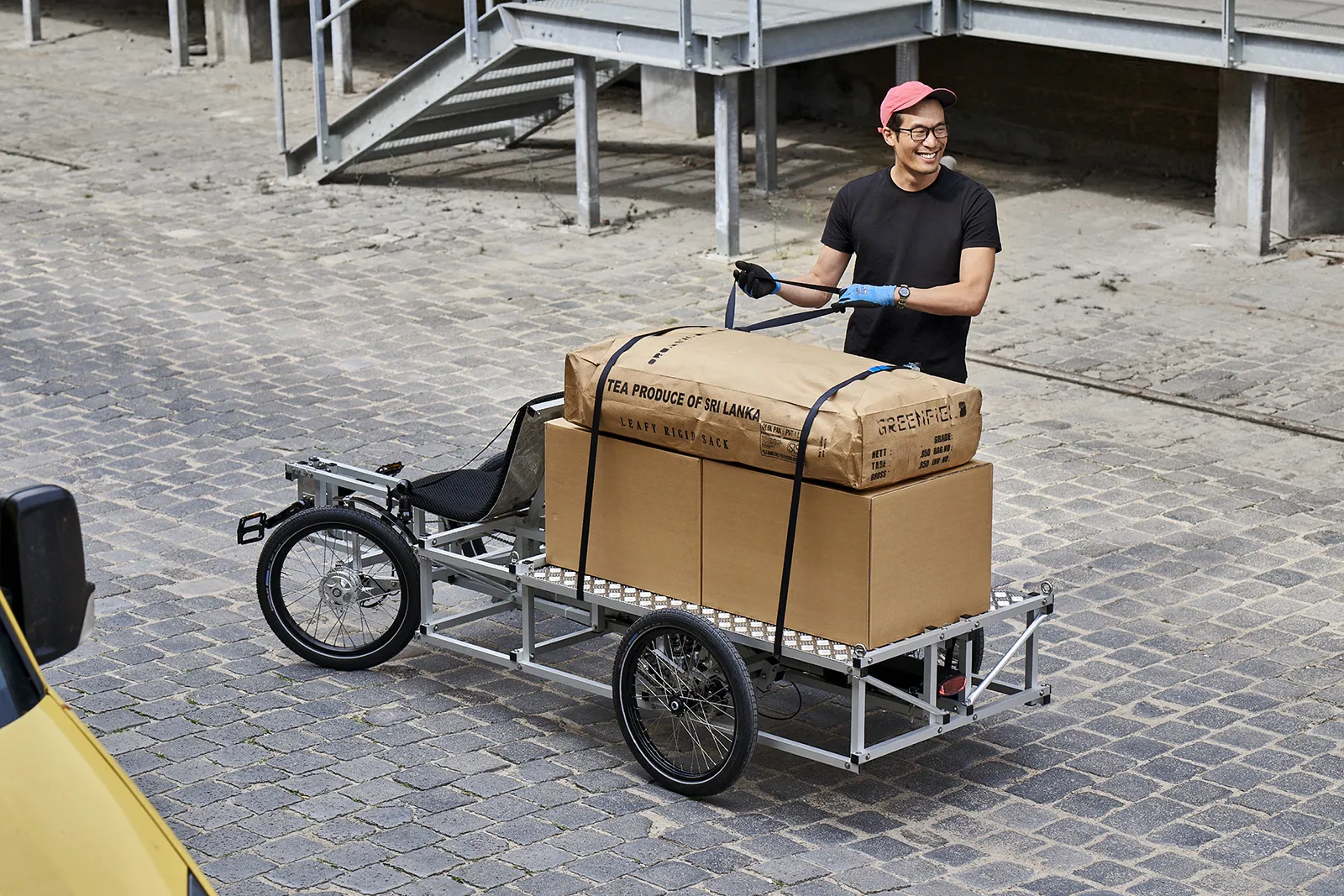

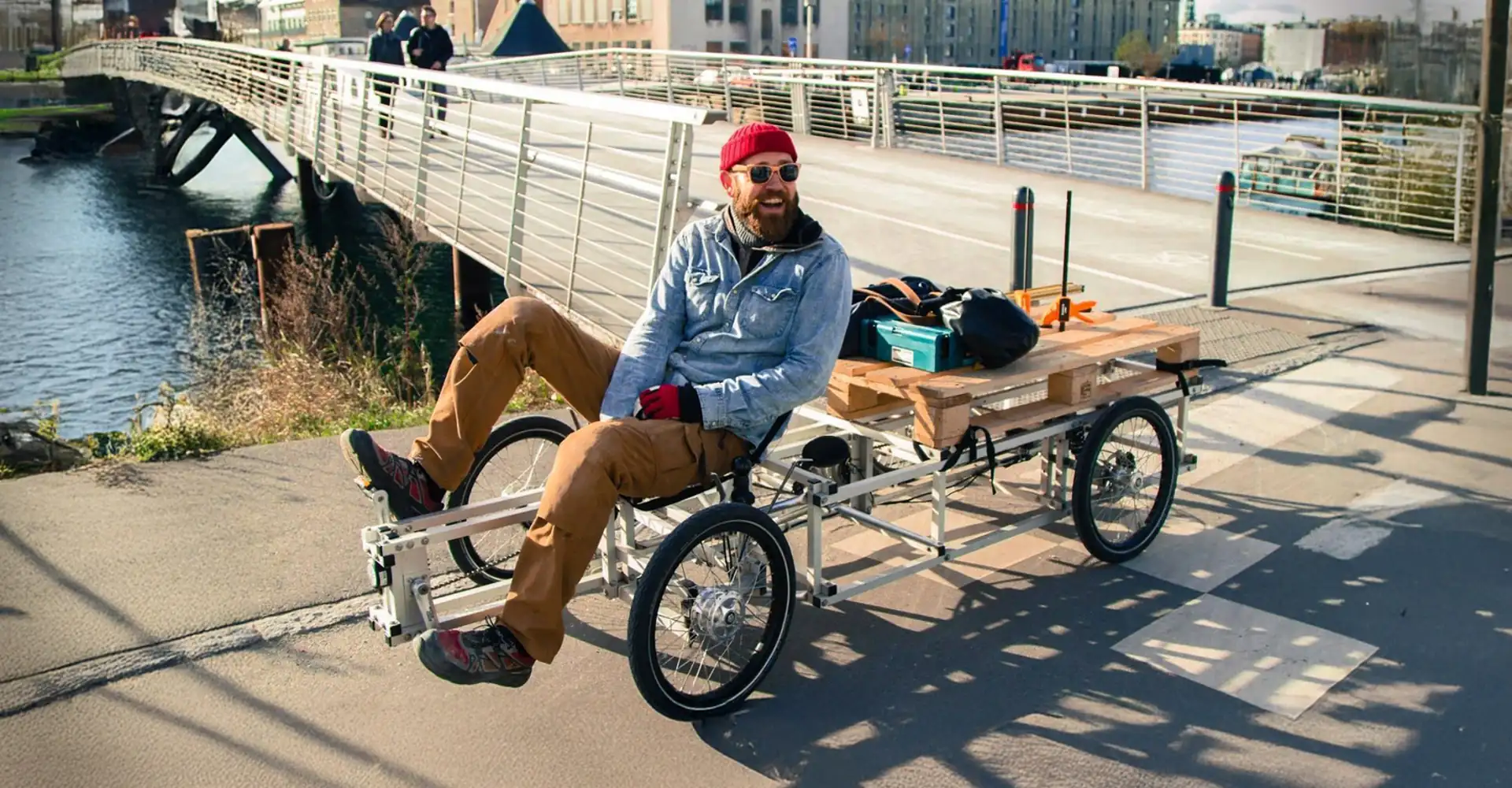

• Loading volume: up to 1.6 m³ / 1 Euro pallet
• Rear loading area (L × W): 132 × 82 cm (larger dimensions possible via superstructures)
• Additional compartments: side compartments next to the driver’s seat (left and right, each approx. 35 × 32 cm)

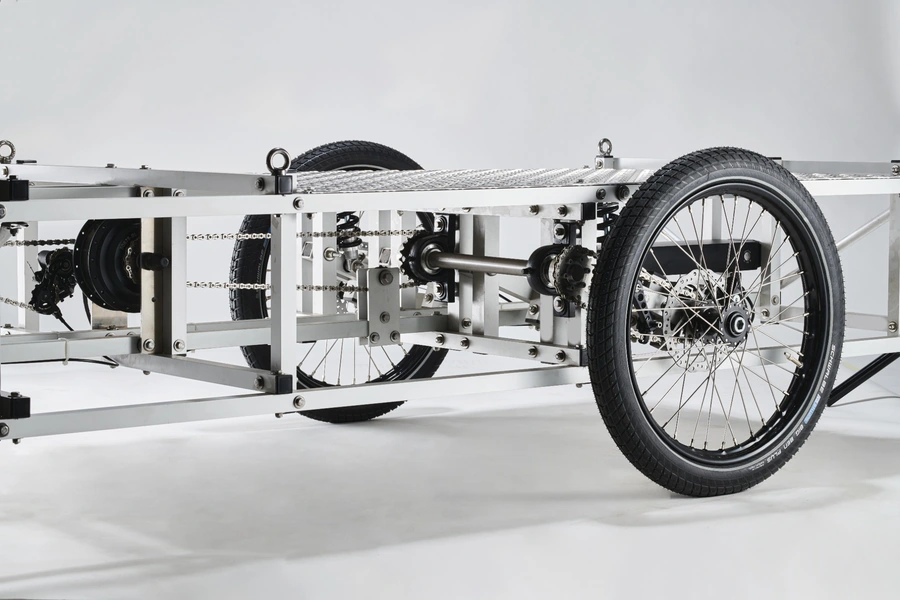

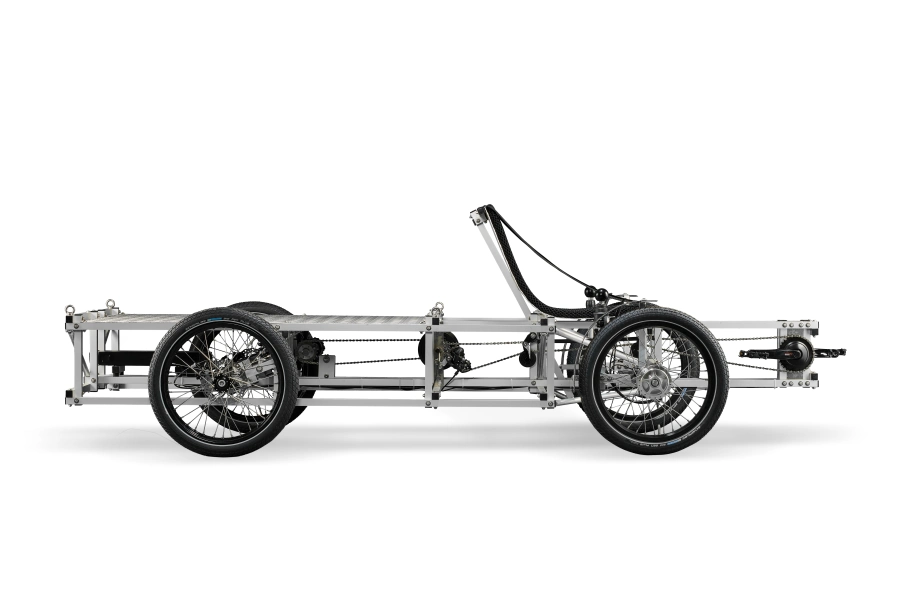

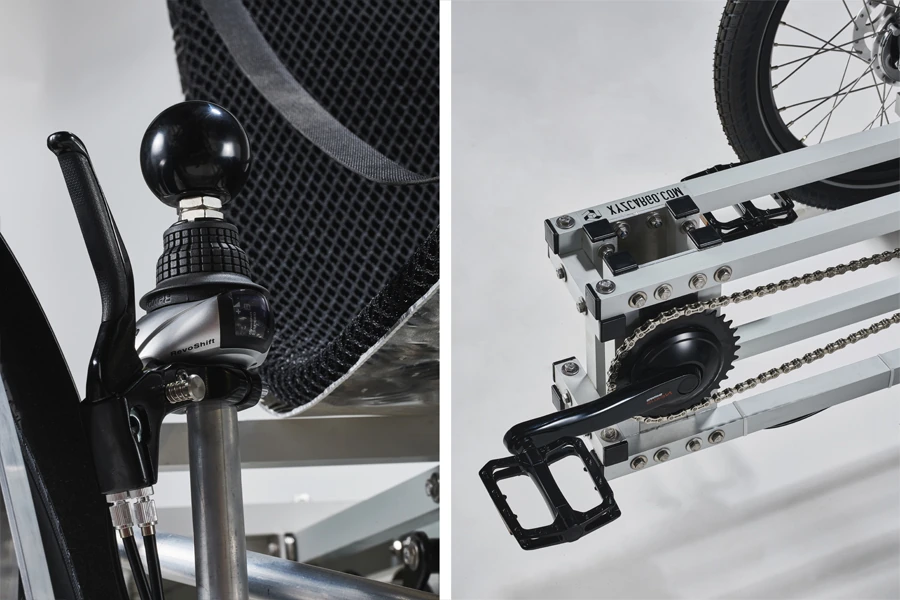

• Frame: Anodised aluminium tube (XYZ space frame construction, self-stiffening); stainless-steel screw connections and self-locking nuts (no re-tightening necessary); all-plastic fittings (pipe fillings at all steering and axle suspension points)
• Motor: E-bike motor with Li-ion battery and disc brake; high-torque 250 W / 36 V motor, 375–480 Wh Li-ion battery (long-life technology, 2-year warranty), speed control via twist grip or display; complies with EU directives for e-bike systems, including disc brakes
• Gears & transmission: 8-speed Shimano shifting with transmission ratio tailored for heavy-load transport
• Braking system:
  • Front: Heavy-duty 90 mm Sturmey Archer drum brakes including synchronous brake system
  • Rear: Disc brake (synchronous)

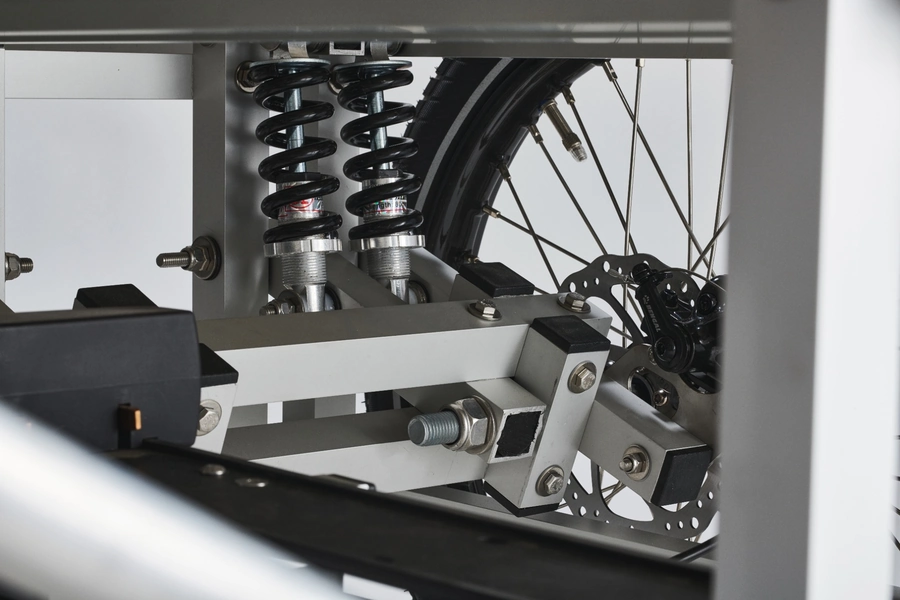

• Suspension: Rear suspension (various spring strengths available depending on application)
• Wheels: 2 × 20″ front, 2 × 20″ rear; robust steel box rims, 2.34 mm heavy-duty stainless-steel spokes, reinforced axles (16 mm rear, 12 mm front)
• Tyres: Special heavy-duty tyres
• Accessories: Optional mudguards and lighting
• Optional structures and modules:

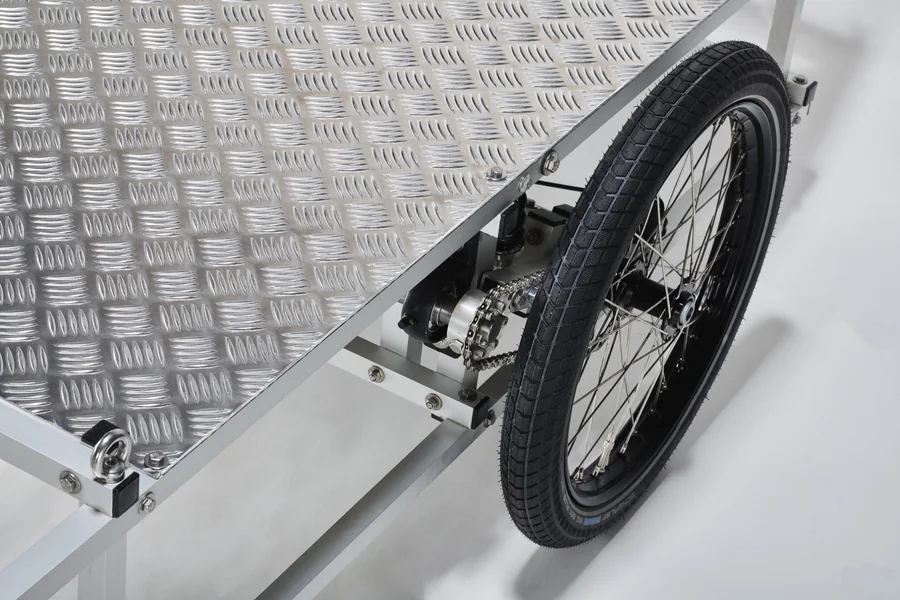

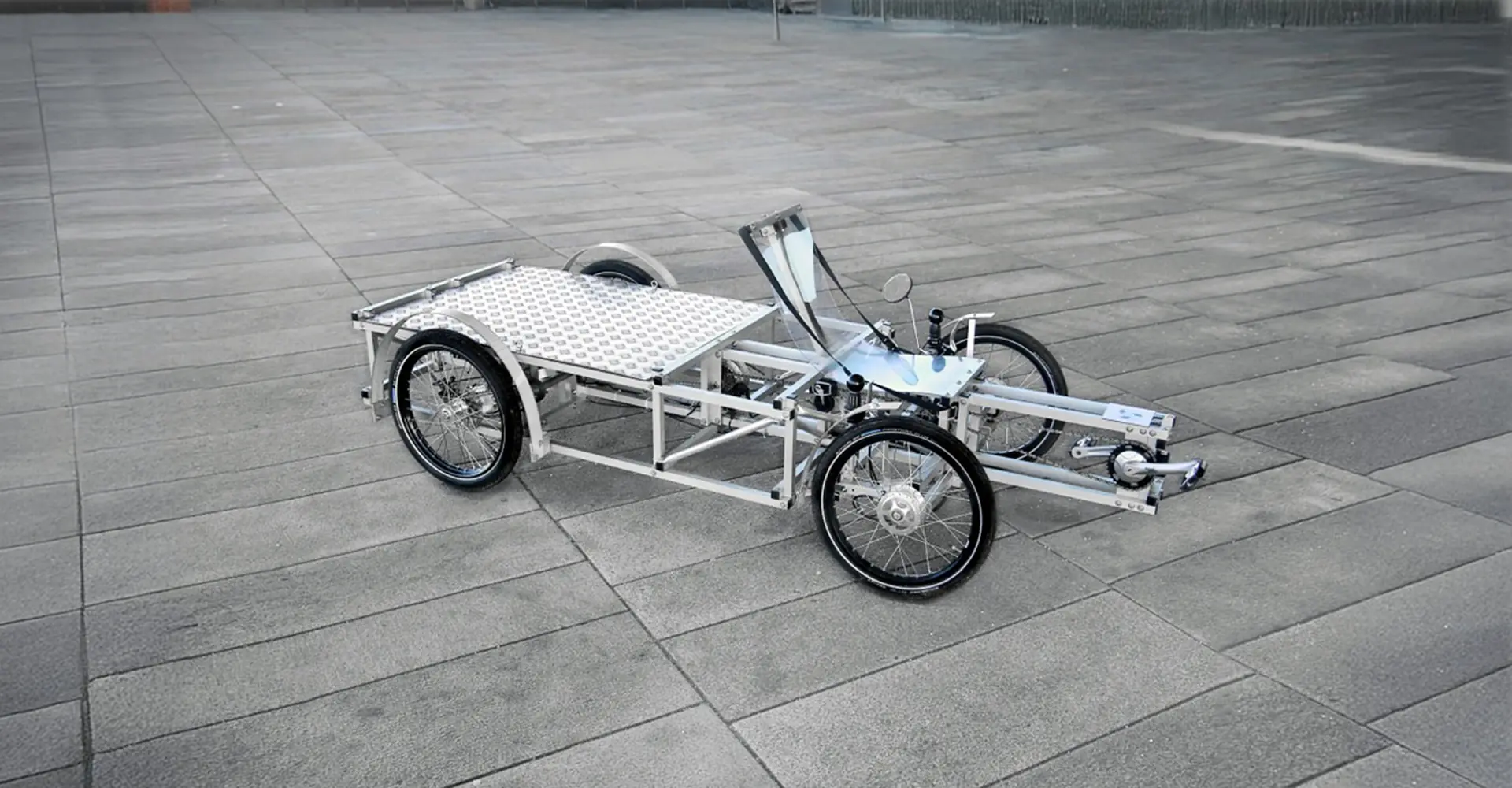

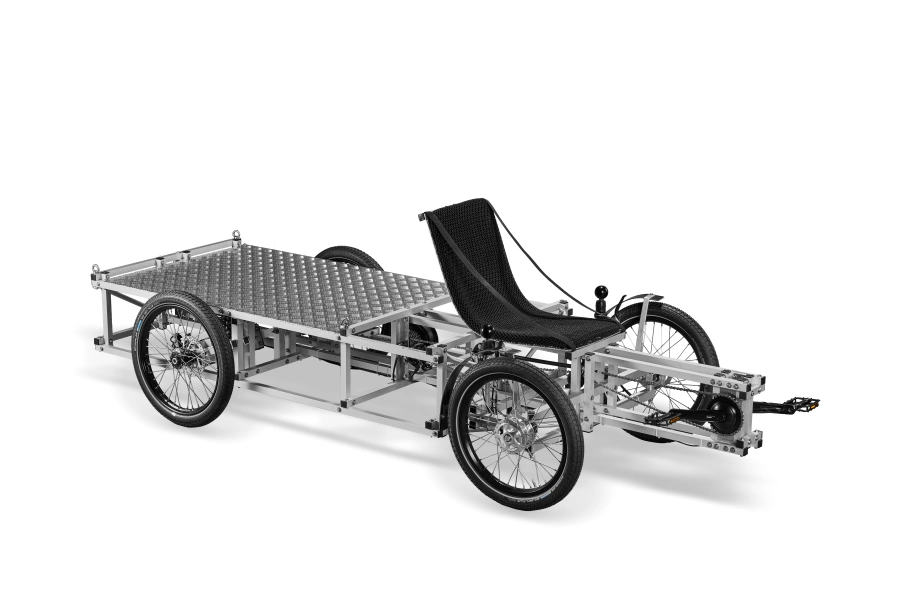

  • Loading area made of aluminium checker plate with eyelets (390 EUR)

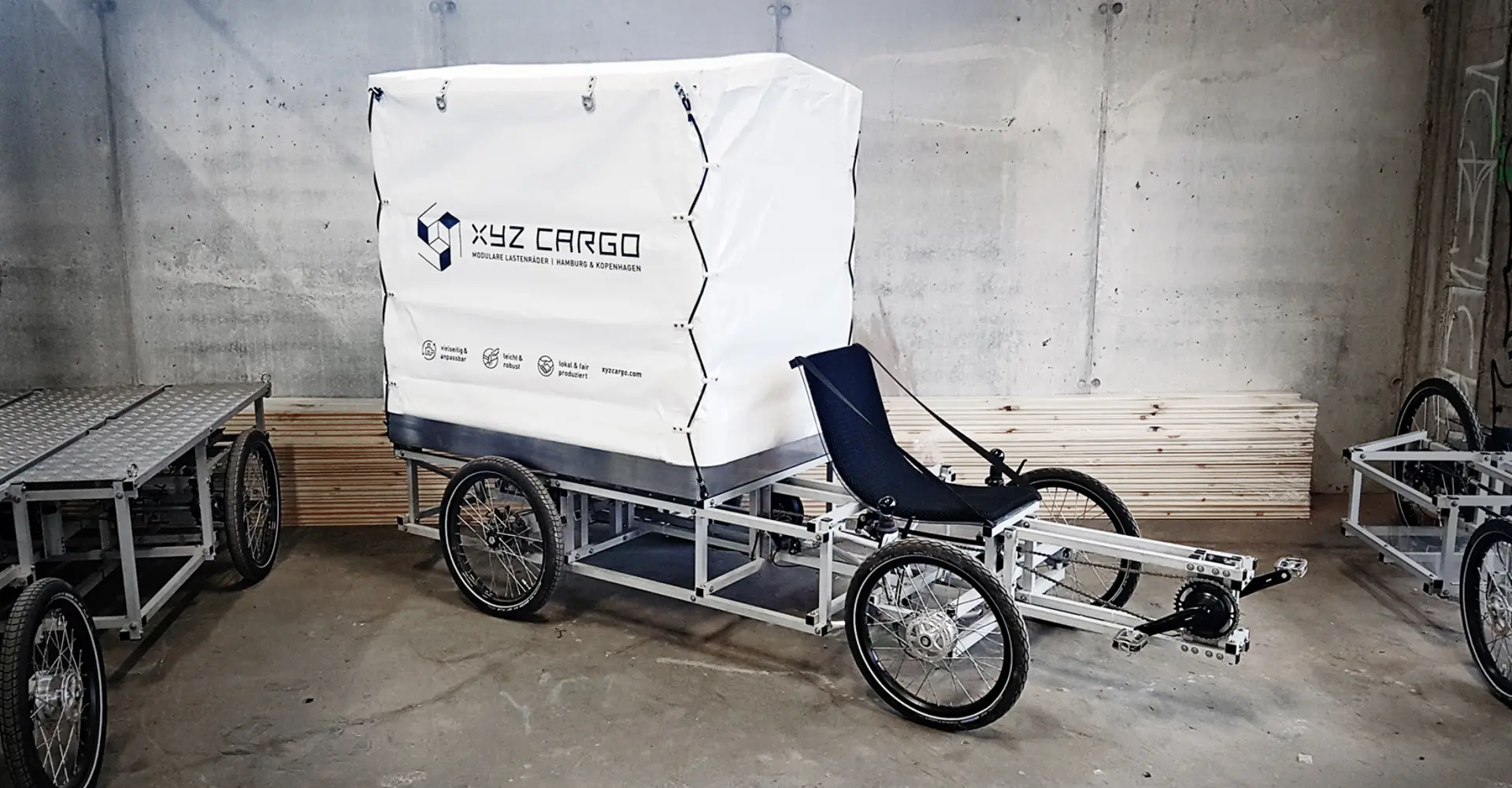

  • Tarp-covered cargo space (1850 EUR)

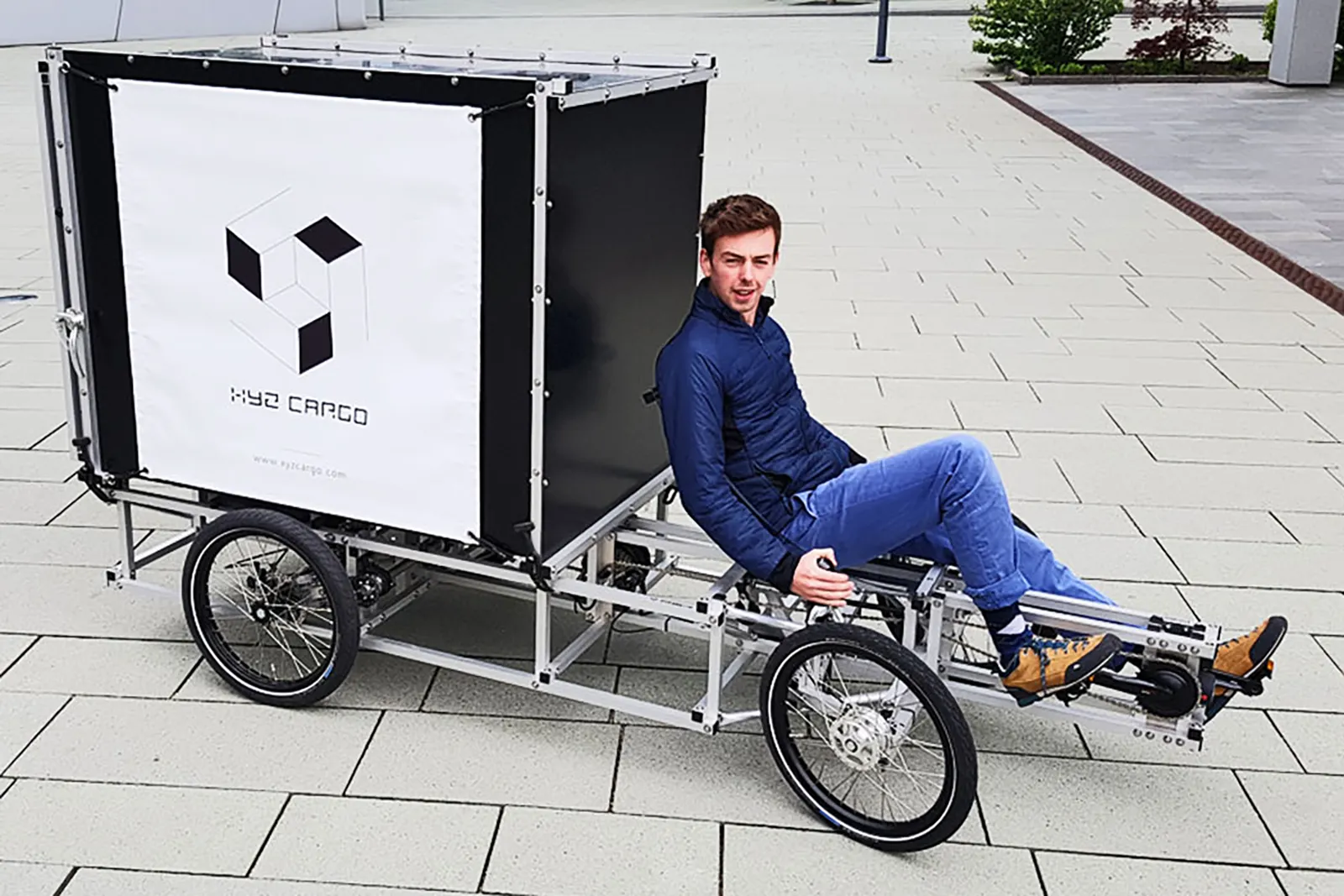

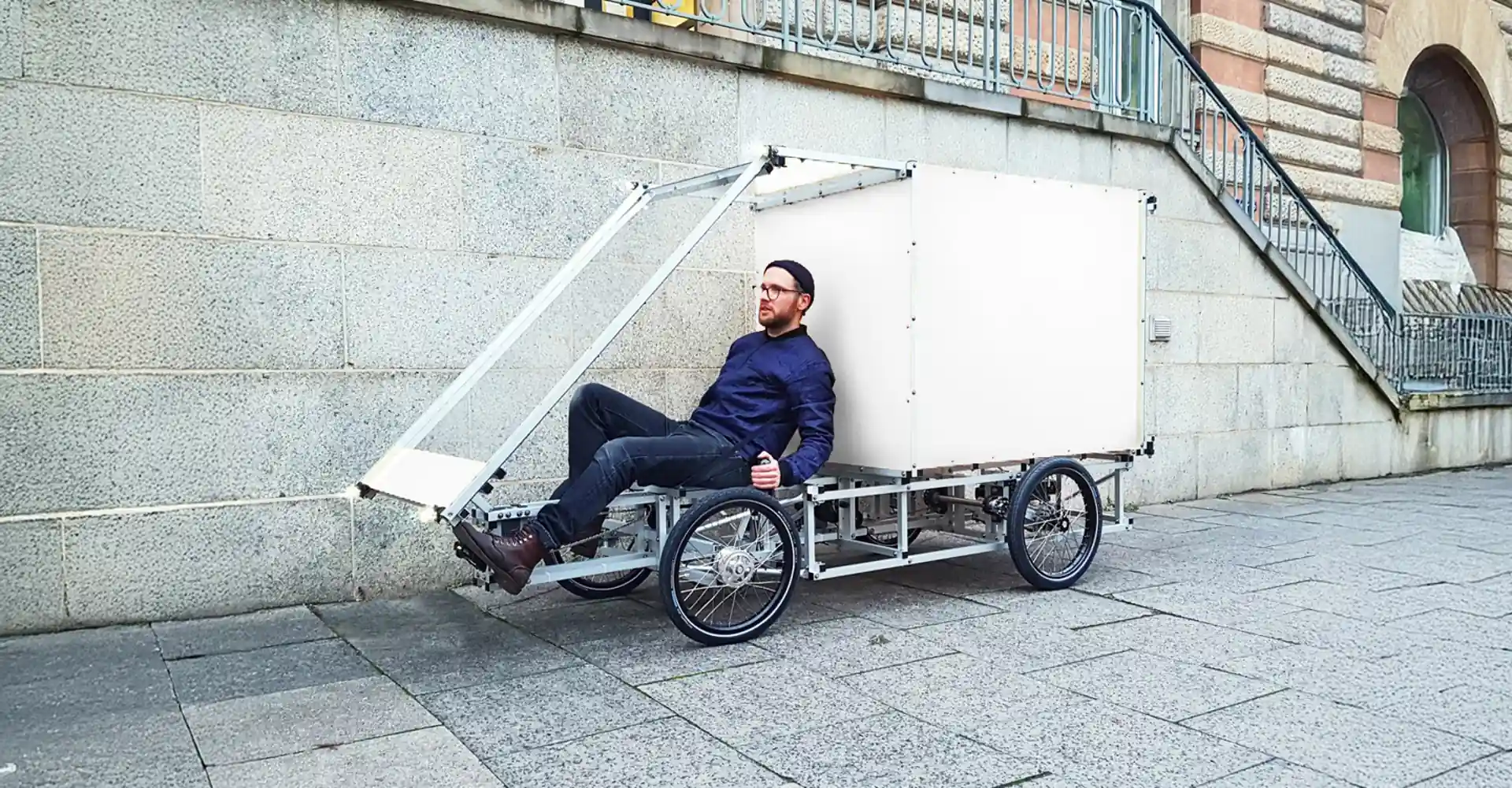

  • Logistics container, fixed or removable, with doors (from 2590 EUR)
  • Platform body with side walls (from 900 EUR)

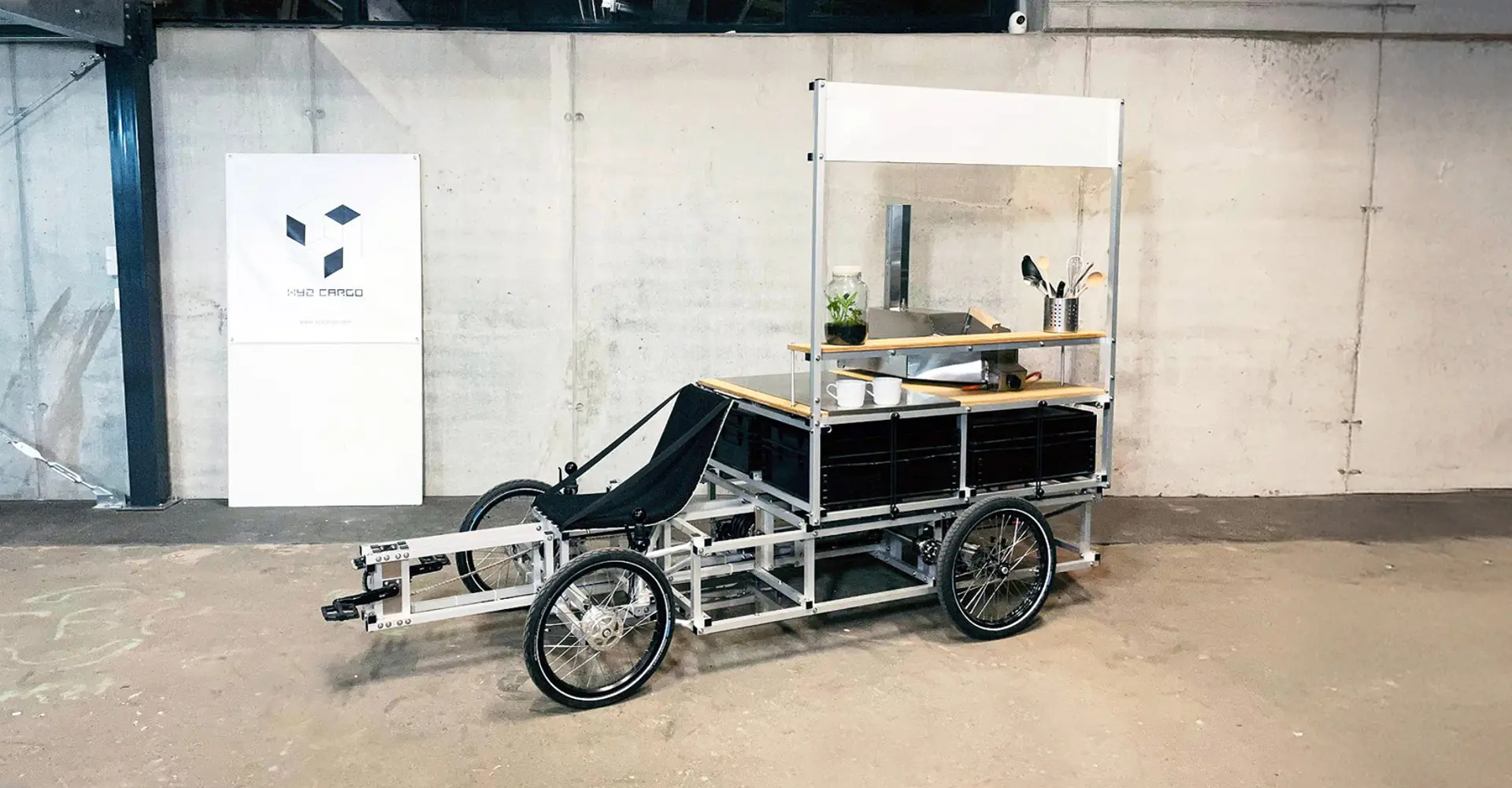

  • Kitchen module with work surface, storage compartments, and roof (from 2900 EUR)
  • Passenger transport with folding rear bench (on request)
• If required, XYZ CARGO can design and manufacture a superstructure tailored to your needs.
• Price (XYZ CARGO FOURWHEELER, including electric motor, fully assembled and ready to drive):
  • 6390 EUR / 47 605 DKK (incl. VAT)

see full pricelist
